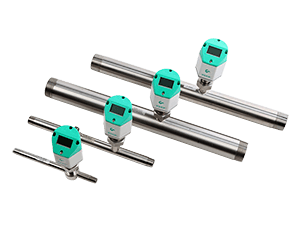

VA 570 is an air flow sensor with an integrated measuring section.

Measuring head(sensor) and body allows easy detachment for calibration and maintenance.

Flange or thread versions are available.

Removable measuring head allows easy cleaning, calibration, etc. without removing body
Calorimetric measurement does not require compensation for temperature and pressure
Integrated Modbus Output; allows monitoring of status effectively
robust design available for use in explosive area

These air flow sensor are ideal for compressed gases.

Range of 1/2" to 12" pipe

Accuracy:  ± 1.5 % of m.v. ± 0.3 % of f.s.

                  on request ± 1.0 % of m.v. ± 0.3 % of f.s.

Notes: m.v. =  of meas. value

            f.s.  =  of full scale

Gives accurate flow rate and totalizer on display.
Accomodate adjustments for reference conditions.
Communication with Modbus RTU.
Simple installation under pressure.

VA 520 is the economic model for compressed gas flow meter.

Operating Temp. : -30...80 °C

Operating Pressure: up to 16 bar, option up to PN 40

Modbus output
compact design for small pipe
calorimetric measurement requires no temp and pressure compensation
digital record of measurements with high precision

VA 550 air flow sensor is an immersion instrument.

It can be installed into existing compressed air resp. gas lines from 3/4“ to 20".

• Pressure range up to 50 bar, special version up to 100 bar
• Temperature range up to 180 °C, optionally up to 350°C

Robust housing, IP 67.

Negligible pressure loss
Switch allows measure forward and reverse direction flow.

Notification when measurements exceed the calibration cycle
