Guided Wave Radar

Precise continuous level measurement and reliable point level detection combined in one device. The Guidense continuous guided wave radar (GWR) uses Time Domain Reflectometry technology: impulses, generated by the sensors circuitry, are propagated along the probe which is immerged in the liquid or solid to be measured. The sensor can transmit the analysed level as a continuous analog output signal or as a control output signals. The Guidense TDR100 can be used with any of the F- and D-Series level monitors and controllers. Within the Guidense family a Smart sensor is also available! Together with the M844 Data Acquisition and Communication Module from ProcessMonitor you can easily read, modify, store and analyze all process parameters from anyplace, anywhere, anytime using a web browser.

Guidense TDR100 Continuous guided level radar with point level detection

Guidense TDR200-SMART Continuous guided level radar with bidirectional digital communication

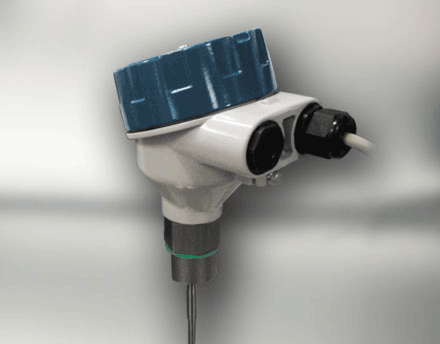

Guidense TDR100 Continuous guided level radar with point level detection

The Guidense TDR100 is a guided wave radar (GWR) for continuous level measurement and point level detection in liquids and solids, with active analog and digital control output. Mechanical installation has almost no restrictions and can be done easily. Due to its relatively small G3/4" process connection thread, the Guidense can be mounted at nearly any existing tank nozzle. Configuration of the TDR100 isn't any harder. Easy configuration can be done by your own crew instead of expensive service engineers.

The Guidense TDR100 uses Time Domain Reflectometry technology: low-energy, high-frequency electromagnetic impulses, generated by the sensors circuitry, are propagated along the probe which is immerged in the liquid or solid to be measured. When these impulses hit the surface of the media, part of the impulse energy is reflected back up the probe which then calculates the level from the time difference between the impulses sent and the impulses reflected.

Features

Accurate continuous level measurement and reliable point level detection in one device.
Reliable measurements even in changing process conditions.
Highly robust measurement, innovative signal analysis and disturbance signal suppression.
Best price-performance ratio in the market.
3 Probe types: single rod probe, wire rope probe and a coaxial probe.
Measuring range: 100 to 20.000mm.
Fastest reaction time with 0,5 sec in the market for smallest vessels / tanks.
No influences caused by tank / vessel internals.
Power requirements: 12 to 30VDC.
Accuracy of +/-3mm or 0.03% of measured distance.
Resistant to harsh environments with IP68/NEMA6P enclosure.
Explosion proof according ATEX for hazardous areas available on request.
Smallest inactive areas in the market.
Fully compatible with the popular Fluidwell F-Series and D-Series level indicators and monitors.
Complete galvanic insulation of device electronics from its inputs/outputs and the tank potential.
User-friendly installation and configuration by your own technicians, saving cost on service engineers.
Applicable in nearly every type of process and storage tank application.

Applications

Suitable in almost every liquid and solids - independent of changing process conditions, such as density, conductivity, temperature, pressure, vapor and turbulence.
All types of process and storage tank applications and has an exceptional performance in media with low dielectric constant (i.e. low reflectivity) such as oils and hydrocarbons.
The Guidense TDR100 has almost no installation restrictions - it can be mounted in small tanks, tall and narrow nozzles and it measures precisely even with difficult tank geometries or close to interfering structures.

Benefits

Accurate continuous level measurement and reliable point level detection in one device.
Best reliability in the market due to 4-wire design.
Highly robust measurement, innovative signal analysis and disturbance signal suppression.
Complete galvanic insulation of device electronics from its inputs/outputs and the tank potential.

More details

Guidense TDR200-SMART Continuous guided level radar with bidirectional digital communication

The Guidense TDR200-SMART is a guided wave radar (GWR) for continuous level measurement in liquids and solids. The Guidense TDR200-SMART has no sensor outputs but a smart bidirectional digital communication output to the ProcessMonitor M844 monitoring and data logging solution. The combined instruments represent Processmonitors Smart Services.

With Smart Services we go further then just remote monitoring. It is now possible to gain full access to the measured sensor data for improving and optimizing your complete process. Even the echo curve which is the sensors core information can be visualized. Problems in the process conditions like foaming, swirling and level changes can be explained and corrected. which results in a reliable and stabilized process. The Guidense TDR200-SMART and the M844 Data Acquisition and Communication Module are the next level of Smart Level Measurement. You can easily read, modify, store and analyse all process parameters from anyplace, anywhere, anytime using a web browser.

Features

Stand alone level monitoring and data logging solution independent from local infrastructures, using GSM /GPRS communications and solar panel, battery or AC/DC power options.
Easy and time saving remote configuration through Smart bidirectional digital communication, even when the M844 has a public, dynamic IP address.
Full control to easily read, modify, store and analyse all process parameters from anyplace, anywhere, anytime using a web browser.
3 Probe types: single rod probe, wire rope probe and a coaxial probe.
Measuring range: 100 to 20.000mm.
Fastest reaction time with 0,5 sec in the market for smallest vessels / tanks.
No influences caused by tank / vessel internals.
Power supplied by the M844.
Accuracy of +/-3mm or 0.03% of measured distance.
Resistant to harsh environments with IP68/NEMA6P enclosure.
Smallest inactive areas in the market.
Applicable in nearly every type of process and storage tank application.

Applications

Extremely suitable Smart level measurement solution for off-grid and hard to reach locations.
Suitable in almost every liquid and solids - independent of changing process conditions, such as density, conductivity, temperature, pressure, vapour, turbulence, low dielectric constant or low reflectivity.
The Guidense TDR200-SMART has almost no installation restrictions - it can be mounted in small tanks, tall and narrow nozzles and it measures precisely even with difficult tank geometries or close to interfering structures.

Benefits

Stand alone level monitoring and data logging solution independent from local infrastructures, using GSM / GPRS communications and solar panel, battery or AC/DC power options.
Easy and time saving remote configuration through Smart bidirectional digital communication, even when the M844 has a public, dynamic IP address.
Full control to easily read, modify, store and analyse all process parameters from anyplace, anywhere, anytime.

More details
