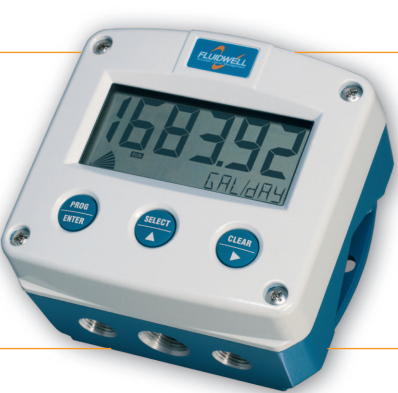

The F090-A-PL is an economical loop powered general purpose indicator with large 26mm (1") high digits. The measuring unit to be displayed is simply selected through an alphanumeric configuration menu. No adhesive labels have to be put on the outside of the enclosure: a weather proof and user-friendly solution!
The configuration of the Span, off-set and number of decimals is done through software functions, without any sensitive DIP-switches or trimmers.

Features

• Displays the actual value, measuring unit and loop current.
• Very large 26mm (1") high digits.
• Selectable on-screen engineering units: %, PPM, meter, m, cm, mm, ft, sqft, ML, L, NL, M³, nM³, GAL, USGAL, IGAL, bbl, CUFT, mg, g, kg, ton, lb, psi, psig, mbar, bar, barg, °C, °F, K, P, RPM, K, KPA or no unit (others on request).
• Selectable on-screen time units for flow rate:
  /sec, /min, /hour, /day or no unit.
• Number of digits for actual value: 5½.
• Piegraph indication: ten segments.
• Green or amber LED backlight with adjustable intensity.
• Auto backup of settings in EEPROM memory.
• Easy configuration with clear alphanumerical display.
• Operational temperature: -40°C to +80°C (-40°F to 176°F).

Applications

• The F-Series is your first and best choice for field mount indicators. Especially in harsh weather conditions like rain, snow, salty atmospheres and temperatures between -40°C up to +80°C (-40°F up to 176°F) for safe and hazardous area applications!
• Applications where a local general purpose display is required without monitoring function, linearization or signal re-transmitting.

• Robust IP66, IP67 (NEMA4X) field enclosure. It is so rugged, you can even stand on it!
• Intrinsically Safe available - ATEX, IECEx, FM and CSA approval for gas and dust applications.
• Programming can be done by your own crew, with the sensible menu-driven structure, saving cost and irritation. Know one, know them all!
• Very diverse mounting possibilities: walls, pipes, panels or directly onto outdoor sensors.

The D090 is a local, panel mount indicator to display the actual process value, range and loop current. The measuring unit to be displayed is simply selected through an alfa-numerical configuration menu. No adhesive labels have to be put on the outside of the enclosure: a weather proof and user friendly solution! The configuration of Span, offset and number of decimals is done through software functions, without any sensitive dip-switches or trimmers.

Features

• Universal input loop powered indicator.
• Very large 26mm (1") digits.
• Displays the actual value, measuring unit and loop current.
• Selectable on-screen engineering units:
  %, PPM, meter, m, cm, mm, ft, sqft, ML, L, NL, M³, nM³, GAL, USGAL, IGAL, bbl, CUFT, mg, g, kg, ton, lb, psi, psig, mbar, bar, barg, °C, °F, K, P, RPM, K, KPA, pH, mV or no unit (others on request).
• Selectable on-screen time units for flow rate:
  /sec, /min, /hour, /day or no unit.
• Number of digits for actual value: 5½.
• Piegraph indication: ten segments.
• Auto backup of all settings.
• Operational temperature: -40°C to +80°C (-40°F to 176°F).
• LED backlight option.
• Aluminum DIN front panel of 144 x 72mm (5.67" x 2.83") according DIN 43700 / IEC 61554.

Applications

• The D-Series is a DIN-sized display and the better alternative for your existing, not waterproof, front panel mount indicators in extreme weather outdoor applications or e.g. in food industries where working environments are often cleaned with powerful water jets.
• The D090 takes operating energy from an input current (2-wire 4 - 20mA) and reduces installation cost. It accepts a wide range of process instruments, including flow (linear or square root), level, pressure and temperature transmitters. All these process parameters can be displayed in their own engineering units.

• Unique, robust IP66, IP67 (NEMA4X) panel mount front enclosure made of die cast aluminum, allowing even big jets of water and total immersion.
• Programming can be done by your own crew with the exact same, plain and sensible menu-driven structure like the F-Series, saving cost and irritation. Know one, know them all!

The F193 is a versatile large digit Modbus display. All displayed information and signal outputs are controlled through the Modbus ASCII / RTU communication protocol. Information of nine different tanks or products can be displayed with an automatic toggle function or can be selected by the operator. Of course, it can also be selected and locked through communication.
Further, up to four control or alarm outputs can be controlled directly or being linked to an alarm status of the nine products: an alarm message will be displayed and the related relay(s) switched. Also available is an analog output signal, fully controlled through the communication. For security reasons, all outputs can be switched-off automatically in case of a communication break-down.
The display shows the actual value, product / tank ID, measuring unit, alarm messages and status.

Features

• Fully controlled through Modbus ASCII / RTU communication protocol.
• Nine different product or tank values can be displayed.
• Displays actual value, product / tank I.D., measuring unit, status and alarm messages.
• Actual values are operator selectable or with the automatic toggle function.
• Up to four alarm outputs can be controlled through communication or related to actual product values.
• Alarms can be terminated through communication or after operator interaction.
• One analog output controlled through communication.
• Actual value: six large 17mm (0.67") digits.
• Green LED backlight.
• Backup of settings in EEPROM memory.
• Operational temperature: -40°C to +80°C (-40°F to 176°F).

Applications

• The F-Series is your first and best choice for field mount indicators. Especially in harsh weather conditions like rain, snow, salty atmospheres and temperatures between -40°C up to +80°C (-40°F up to 176°F) for safe and hazardous area applications!

Local indication and monitoring of process parameters where the actual information is provided through a Modbus communication link and not a sensor.

• Robust IP66, IP67 (NEMA4X) field enclosure. It is so rugged, you can even stand on it!
• Intrinsically Safe available - ATEX, IECEx, FM and CSA approval for gas and dust applications.
• Programming can be done by your own crew, with the sensible menu-driven structure, saving cost and irritation. Know one, know them all!
• Very diverse mounting possibilities: walls, pipes, panels or directly onto outdoor sensors.

The F195 has been developed for the valve position indication and monitoring in hydraulic systems. By using a bi-directional flowmeter to measure the volume displaced by the actuator, an accurate position of the system is calculated.
The display shows the position as a percentage as well as with the text "open" and "closed" for the minimum and maximum positions. As standard, the analog output mirrors the percentage displayed which can be used to transmit the valve position. The usual difficulties encountered in such applications include: very low flows, vibration, thermal expansion of the oil and high ambient temperatures. These are all well catered for in the design and operation of the F195.

Features

• Valve position calculated through bi-directional flow measurement.
• Displays the position as 0 - 100%, the moved volume and "open / closed" texts.
• Analog output mirrors the position of the valve.
• Modbus communication link for remote monitoring.
• Re-calibration feature.
• Service counter displays the number of full strokes.
• Easy configuration with clear alphanumeric display.
• Quadrature input to detect the direction of flow.
• Green LED backlight.
• Backup of settings in EEPROM memory.
• Operational temperature: -40°C to +80°C (-40°F to 176°F).

Applications

• The F-Series is your first and best choice for field mount indicators. Especially in harsh weather conditions like rain, snow, salty atmospheres and temperatures between -40°C up to +80°C (-40°F up to 176°F) for safe and hazardous area applications!
• Valve position indication and monitoring in hydraulic systems. For example as valve position indicator VPI for ballast tanks in ships.

• Robust IP66, IP67 (NEMA4X) field enclosure. It is so rugged, you can even stand on it!
• Intrinsically Safe available - ATEX, IECEx, FM and CSA approval for gas and dust applications.
• Programming can be done by your own crew, with the sensible menu-driven structure, saving cost and irritation. Know one, know them all!
• Very diverse mounting possibilities: walls, pipes, panels or directly onto outdoor sensors.

The F197 is a manual set-point generator. The operator enters an analog or a scaled output value or a percentage which will be transmitted as a (0)4 – 20mA or 0 – 10V DC signal to a control device. If available, the F197 can also display the measured actual process value. However, there is no direct control relationship between the input and output value. Further, one low and one high alarm value can be set with an alarm ignore function to monitor the process.
The display shows the preset value, actual value and status simultaneously. On-screen engineering units are easily configured from a comprehensive selection.

Features

• Manual (0)4 – 20mA / 0 – 10V DCcontrol output.
• Preset value can be entered as a scaled value (e.g. 415°C), analog value (e.g. 15,3mA) or as a percentage.
• Displays the actual process value and transmitted value simultanously.
• One low and one high alarm value can be set with alarm ignore time function.
• Preset value: seven 17mm (0.67") digits during programming and 8mm (0.31") digits during process.
• Actual value: seven 17mm (0.67") digits during process.
• Modbus communication link for remote control.
• Green LED backlight.
• Backup of settings in EEPROM memory.
• Operational temperature: -40°C to +80°C (-40°F to 176°F).

Applications

• The F-Series is your first and best choice for field mount indicators. Especially in harsh weather conditions like rain, snow, salty atmospheres and temperatures between -40°C up to +80°C (-40°F up to 176°F) for safe and hazardous area applications!
• Manual set-point control of process variables requiring a (0)4 – 20mA or0 – 10V DC input value. For example to tune temperature or flow rate manually.

• Robust IP66, IP67 (NEMA4X) field enclosure. It is so rugged, you can even stand on it!
• Intrinsically Safe available - ATEX, IECEx, FM and CSA approval for gas and dust applications.
• Programming can be done by your own crew, with the sensible menu-driven structure, saving cost and irritation. Know one, know them all!
• Very diverse mounting possibilities: walls, pipes, panels or directly onto outdoor sensors.
