The PD7000 includes a digital input as standard. This digital input can operate with the tare, reset tare, or interlock relays feature, force relays on from a signal from a PLC or relay on other equipment, and much more. This is ideal for installations where the meter is inaccessible behind a cover, or where an additional function key is needed for customized operation.

• 100 or 1000 Ω Platinum, 10 Copper, 120Ω Nickel RTDs
• 1° or 0.1° Resolution
• Averages up to 10 RTD Sensors
• Automatic Cold Junction Compensation
• NEMA 4X, IP65 Front
• Universal 85-265 VAC or 12/24 VDC Input Power
• Large Dual-Line 6-Character Display, 0.60" & 0.46"
• Programmable Displays & Function Keys
• Sunlight Readable Display Models
• 2 or 4 Relays + Isolated 4-20 mA Output Options
• External 4-Relay & Digital I/O Expansion Modules
• USB, RS-232, & RS-485 Serial Communication Options
• Modbus® RTU Communication Protocol Standard

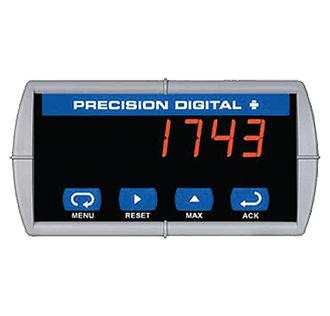

The Sabre T temperature meter is easily programmed using the four front panel buttons. There is only one switch on the entire meter; there are no jumpers, and no need to ever open the case.

The Sabre T is housed in a 1/8 DIN shallow depth case that is designed for easy installation and servicing. The extra large front bezel is rated Type 4X, IP65. The mounting brackets are locked in place to make it easy to mount the meter in the panel. Removable screw terminal connectors make for easy and convenient wiring.

• Product Type: Digital Panel Meter
• Input: J, K, T, E TC; 100 Ω Pt RTD
• Display: 0.56" (14 mm) LCD 4-Digit
• Case: 1/8 DIN, High Impact Plastic
• Power: 85-265 VAC or 12/24 VDC option

The Model PD765 Trident digital panel meter is one of the most versatile digital panel meters on the market and will satisfy a wide variety of process applications. The Trident can be field programmed to accept process voltage (0-5V, 1-5V, etc) and current (4-20 mA) inputs, 100 Ohm RTDs, and the four most common thermocouples. It is housed in a shallow-depth, 1/8 DIN enclosure that features a NEMA 4X front panel and convenient mounting hardware. There are two power options for the Trident: 85 to 265 VAC or 12-36 VDC and it can provide 24 VDC to power the transmitter if needed. Programming and setup can be performed with the four front panel pushbuttons, free MeterView software, or using the Copy function.

• 4-20 mA, ± 10 V, TC & RTD Inputs
• NEMA 4X, IP65 Front
• Shallow Depth Case 3.6" Behind Panel
• Universal Power Supply 85-265 VAC
• Two Relays Option with Alternation &
• Time Delays
• 4-20 mA Analog Output Option
• 24 VDC @ 200 mA Transmitter Power Option
• RS-232, RS-485 Serial Communication Options
• Free Modbus® RTU Protocol & LabVIEW™ Driver
• Sunlight Readable Display
• 3 Year Warranty
• Free MeterView Software Download

The Model PD765 Trident digital panel meter is one of the most versatile digital panel meters on the market and will satisfy a wide variety of process applications. The Trident can be field programmed to accept process voltage (0-5V, 1-5V, etc) and current (4-20 mA) inputs, 100 Ohm RTDs, and the four most common thermocouples. It is housed in a shallow-depth, 1/8 DIN enclosure that features a NEMA 4X front panel and convenient mounting hardware. There are two power options for the Trident: 85 to 265 VAC or 12-36 VDC and it can provide 24 VDC to power the transmitter if needed. Programming and setup can be performed with the four front panel pushbuttons, free MeterView software, or using the Copy function.

• 4-20 mA, ± 10 V, TC & RTD Inputs
• NEMA 4X, IP65 Front
• Shallow Depth Case 3.6" Behind Panel
• Universal Power Supply 85-265 VAC
• Two Relays Option with Alternation &
• Time Delays
• 4-20 mA Analog Output Option
• 24 VDC @ 200 mA Transmitter Power Option
• RS-232, RS-485 Serial Communication Options
• Free Modbus® RTU Protocol & LabVIEW™ Driver
• Sunlight Readable Display
• 3 Year Warranty
• Free MeterView Software Download

The MINIMUX® II is a microprocessor-based eight channel analog input scanner/multiplexer and annunciator that provides low-cost automatic switching for multi-point display and alarm systems. Each MINIMUX® II can automatically switch up to eight inputs to another device such as a digital panel meter, controller, or PLC. Signal switching is done via reed relays making the MINIMUX® II ideal for switching thermocouples, RTDs, control loops, and AC & DC signals.

In its most basic form, the PD138 is the electrical equivalent of a double-pole, eight position automatic switch. Whatever input is brought into the PD138 is dwelled on for a certain amount of time while being channeled/switched out to another device. For example, a typical application may involve channeling/switching eight type J thermocouples into a single digital panel meter.

• Product Type: Digital Panel Indicator
• Description: Temperature & Process Scanner
• Inputs: TC, RTD, AC Volts, DC Volts
• Number of Inputs: 8 Inputs per Unit, Eliminates Need for 7 Displays
• Case: 1/8 DIN, High Impact Plastic, Shallow Depth

The PD560 Series of meters combines excellent standard features including a universal input, alarm relay, and a 4 to 20 mA retransmitting output with powerful options including an additional two alarm relays, digital inputs, and RS-485 serial communication including Modbus.

The Nova Digital Meters have dual four-digit LEDs and can display commonly accessed parameters such as the maximum and minimum input values. All programming of a Nova Digital Meter is done through the front panel. No switches or jumpers are required.

To prevent unauthorized changes to key parameters, a user defined lockout password must be entered to access the group menus that are not commonly used during operation

• Product Type: Digital Panel Indicator
• Description: Digital Temperature Meters
• Process Inputs: 0.4-2.0 V, 1-5 V, 0-10 V, -10 to 20 mV, 0-100 mV, 4-20 mA (4-20 mA requires resistor PDX-RES1)
• Size: 1/8 DIN Horizontial
• Temperature Inputs: J, K, T, E, B, R, S, L, U, N, W, Platinel II TC; 100 Ω Pt RTD
• Display: Dual-Line 4-Digit Red LED
• Case: 1/8 DIN, High Impact Plastic

The PD560 Series of meters combines excellent standard features including a universal input, alarm relay, and a
4 to 20 mA retransmitting output with powerful options including an additional two alarm relays, digital inputs, and RS-485 serial communication including Modbus.

The Nova Digital Meters have dual four-digit LEDs and can display commonly accessed parameters such as the maximum and minimum input values. All programming of a Nova Digital Meter is done through the front panel. No switches or jumpers are required.

To prevent unauthorized changes to key parameters, a user defined lockout password must be entered to access the group menus that are not commonly used during operation

• Product Type: Digital Panel Indicator
• Description: Digital Temperature Meters
• Process Inputs: 0.4-2.0 V, 1-5 V, 0-10 V, -10 to 20 mV, 0-100 mV, 4-20 mA (4-20 mA requires resistor PDX-RES1)
• Size: 1/8 DIN Horizontial
• Temperature Inputs: J, K, T, E, B, R, S, L, U, N, W, Platinel II TC; 100 Ω Pt RTD
• Display: Dual-Line 4-Digit Red LED
• Case: 1/8 DIN, High Impact Plastic
