Scanjet Model SC30T is driven by the cleaning media by means of a fixed installed turbine with an integrated programmable drive unit. The permanent lubrication means an oil-free drive unit and the patented magnetic transmission allow an exchange of the drive unit without exposing the tank to the outside atmosphere.

Powerful single nozzle tank cleaning machine

The single nozzle concept gives a very solid and powerful jet with an optimized cleaning result on all tank surfaces. It has the unique separated turning and lifting movements and a rapid manual overdrive for sector cleaning setting.

Self draining nozzle

The nozzle assembly is self draining and the machine has a full 0-180 degrees cleaning range. The patented design is in accordance with IMO-Marpol requirements.

Fully programmable

The SC 30T is fully programmable to meet multiple cleaning needs. Various cleaning programs, including prewash, can be chosen during or before the cleaning operation.

Integration with WashTrac

Fully prepared for integration with WashTracTM tank cleaning monitoring system.

Typical applications for SC30T

– Chemical carriers

– Product carriers

– Crude oil tankers

– Offshore applications

The SC30A is a single nozzle tank cleaning machine especially developed for sector cleaning tanks/cisterns/vessels in hazardous ATEX classified areas. It gives the user the possibility to optimise the cleaning, with minimal use of time, energy and cleaning media.

SC30A consists of two main parts; one washing unit that is installed in the tank and one portable air driven drive unit SC100, SC100 PW or SC180 for operation. The drive unit can be exchanged or removed without exposing the tank to the outside atmosphere. As option the SC30A can be provided with a free selection of single nozzle levels giving a tailor-made installation for each specific need.

SC30A consists of two main parts; one washing unit that is installed in the tank and one portable air driven drive unit SC100, SC100 PW or SC180 for operation. The drive unit can be exchanged or removed without exposing the tank to the outside atmosphere. As option the SC30A can be provided with a free selection of single nozzle levels giving a tailor-made installation for each specific need.

- Chemical carriers

- Product carriers

- Offshore and supply vessels

- Large reactors River barges

Scanjet Model SC30TH is driven by the cleaning media by means of a fixed installed turbine with an integrated programmable drive unit. The permanent lubrication means an oil-free drive unit and the patented magnetic transmission allow an exchange of the drive unit without exposing the tank to the outside atmosphere.

Powerful single nozzle tank cleaning machine

The single nozzle concept gives a very solid and powerful jet with an optimized cleaning result on all tank surfaces. It has the unique separated turning and lifting movements and a rapid manual overdrive for sector cleaning setting.

Self draining nozzle

The nozzle assembly is self draining and the machine has a full 0-180 degrees cleaning range. The patented design is in accordance with IMO-Marpol requirements.

Fully programmable

The SC30TH is fully programmable to meet multiple cleaning needs. Various cleaning programs, including prewash, can be chosen during or before the cleaning operation.

Integration with WashTrac

Fully prepared for integration with WashTrac tank cleaning monitoring system.

Typical applications for SC30TH

– Chemical carriers

– Product carriers

– Crude oil tankers

– Offshore applications

Scanjet Model SC30TP is a modern tank cleaning machine especially developed for use in arctic conditions. The machine is media driven by means of a fixed installed turbine with a portable programmable drive unit, to ensure rapid and safe operation also in arctic conditions.

Powerful single or twin nozzle tank cleaning machine

Full versatility is provided by free selection of single nozzle or twin nozzle type of system and multistage nozzle levels give a customised installation for each specific vessel. The nozzle(s) directing the cleaning media perform a horizontal spiral motion giving a single or crossing helical pattern with a perfect cleaning result even in areas below horizontal stringers, longitudinals and corrugated bulkheads.

Typical application for SC30TP

– Chemical carriers

– Product carriers

– Small and medium size crude oil carriers

–Offshore

Scanjet Model SC40RT is a robust and very flexible type of tank cleaning machine specially designed for marine and offshore applications. Scanjet Model SC40RT is driven by the cleaning media by means of a fixed installed turbine with an integrated drive unit.

Twin nozzle tank cleaning machine

The SC40RT gives the user the possibility to optimise the cleaning operation and is preprogrammed to minimize the use of time, energy and cleaning media.

Magnetic transmission and grease lubrication

The drive unit can be removed without oil spill exposing the tank to the outside atmosphere. SC40RT has very few moving parts requiring a minimum of service and is maintenance free inside tank.

Adjustable rotation speed

The rotation speed can easily be adjusted on the driving unit.

Typical applications for SC40RT

– Chemical carriers

– Product carriers

– Offshore applications

– River barges

– Deck tanks

– Residual tanks

Scanjet Model SC40RH is a robust and very flexible type of tank cleaning machine specially designed for marine and offshore applications. Scanjet Model SC40RH is hydralic driven with an intergrated drive unit.

Twin nozzle tank cleaning machine

The SC40RH gives the user the possibility to optimise the cleaning operation and is preprogrammed to minimize the use of time, energy and cleaning media. SC 40RH has very few moving parts requiring a minimum of service and is maintenance free inside tank.

Adjustable rotation speed

The rotation speed can easily be adjusted on the driving unit.

Typical applications for SC40RH

– Chemical carriers

– Product carriers

– Offshore applications

– River barges

– Deck tanks

– Residual tanks

Scanjet Model SC40RE is a robust and very flexible type of tank cleaning machine specially designed for marine and offshore applications. Scanjet Model SC40RE is electrical driven.

Twin nozzle tank cleaning machine

The SC40RE gives the user the possibility to optimise the cleaning operation and is preprogammed to minimize the use of time, energy and cleaning media. SC40RE has very few moving parts requiring a minimum of service and is maintenance free inside tank.

Adjustable rotation speed

The rotation speed can easily be adjusted on the driving unit.

Typical applications for SC40RE

– Chemical carriers

– Product carriers

– Offshore applications

– River barges

– Deck tanks

–Residual tanks

Scanjet Model SC15TW can be used for fixed installation on down pipe or for portable cleaning on a flexible hose.

SC15TW is available in bronze or stainless steel versions and is therefore suitable for any type of tank cleaning operation. Our range of accessories, such as hoses, hose saddles, hose connectors or adapters, y-pieces and valves also covers any type of operation.

Typical application for SC15TW

– Chemical carriers

– Product carriers

– Crude oil carriers

– Offshore

– Bulk carriers

– OBO carriers

– FPSO & FSU

Scanjet Model SC45TW can be used for fixed installation on down pipe or for portable cleaning on a flexible hose.

SC45TW is available in bronze or stainless steel versions and is therefore suitable for any type of tank cleaning operation. Our range of accessories, such as hoses, hose saddles, hose connectors or adapters, y-pieces and valves also covers any type of operation.

Typical applications for SC45TW:

– Crude oil carriers

– Product carriers

– Offshore

– Bulk carriers

– OBO carriers

– FPSO & FSU

Scanjet Model SC15TW GL is a tank cleaning machine specially developed for cleaning of tanks in harsh environments. Tanks with volumes up to 5000 m³ can be cleaned by one single unit.

Typical installations are onboard offshore supply vessels, drilling rigs, barges, chemical carriers, product carriers or industrial processes

All types of installations where solid particles are or can be in the cleaning media.

The size, construction and cleaning requirements of these tanks are our design criteria, which will be evaluated prior to installation and operation.

The SC15TW GL can be used either as a fixed installed machine, installed on a down pipe, or as a portable system to be used in different tanks/vessels, mounted on a hose with a supporting hose saddle.

Working Principle

The cleaning media flows through the machine to the nozzles and out in the tank, cleaning all surfaces with powerful high impact jets. The flow will pass the turbine which will start the rotary motion of the gearbox. This movement will create a criss-cross pattern on the tank walls, covering 360° of the tank.

The first cycle will create a wide pattern, Pre Wash, on the tank walls, the following cycles will dense the pattern until a full program is reached after 4 cycles.

The gearbox is oil lubricated and sealed of from the cleaning media.

Scanjet Model SC50 and SC75T is driven by the cleaning media by means of a fixed installed turbine with an integrated programmable drive unit. Full versatility is provided by free selection of single nozzle or twin nozzle type of system and multistage nozzle levels give a tailor-made installation for each specific vessel.

The nozzle (s) directing the cleaing media perform a horizontal spiral motion giving a single or crossing helical pattern with a perfect cleaning result even in areas below horizontal stringers, longitudinals, corrugated bulkheads etc. The patented design is in accordance with IMO-Marpol requirements.

Fully prepared for integration with WashTrac, our tank cleaning monitoring system.

Working Principle

The cleaning media comes from the supply line onboard the vessel and enter into the inlet housing and passes the vertical turbine, which drives the driving unit.

The cleaning media continues through the main pipe to the nozzles and then out in the tank. The driving unit will rotate the main pipe and elevate the nozzle(s) and will hereby clean the tank in a spherical pattern.

The rotation speed is controlled by the rotation speed of the turbine and could easily be set to desired speed.

The rotation of the main pipe and the elevation of nozzle(s) are indicated on the scale on the lifting rod.

The elevation per revolution (Pitch) for the nozzle(s) can be set to different pre-programmed values by means of lifting and turning the program knob.

Scanjet Model SC90T2 is driven by the cleaning media by means of a fixed installed turbine with an integrated programmable drive unit. The permanent lubrication means an oil-free drive unit and the patented magnetic transmission allow an exchange of the drive unit without exposing the tank to the outside atmosphere.

Powerful single nozzle tank cleaning machine

The single nozzle concept gives a very solid and powerful jet with an optimized cleaning result on all tank surfaces. It has the unique separated turning and lifting movements and a rapid manual overdrive for sector cleaning setting.

Self draining nozzle

The nozzle assembly is self draining and the machine has a full 0-180 degrees cleaning range. The patented design is in accordance with IMO-Marpol requirements.

Fully programmable

The SC 90T2 is fully programmable to meet multiple cleaning needs.Various cleaning programs can be chosen during or before the cleaning operation.

Integration with WashTrac

Fully prepared for integration with WashTracTM tank cleaning monitoring system.

Typical applications for SC90T2

– Crude oil tankers

– Product carriers

– Bulk carriers

Scanjet SC360APR is a high capacity Anti-pirate water cannon for boarding denial. The fixed installed or removable, self operating, multi nozzle machine is driven by the water flow.

The Anti-pirate water cannons consist of three main parts; an Anti-pirate water cannon gun unit, a turbine powered drive unit and a mounting rail bracket.

The pump capacity, construction and requirements of the vessel are the design criteria, which have to be evaluated prior to installation. The SC 360APR can be powered by existing pumps on board the vessel. It can be installed either as permanent or as portable units to give the vessel the opportunity to optimise its system and budget.

The horizontal position of the nozzles can when installed be adjusted for each machine. It is possible to optimise the angle to the hull as needs may vary at different positions along the vessels length and due to shape of the hull. The SC 360APR requires no chemicals or steam additives - it has no environmental impact.

By starting the pumps, the SC 360APR starts automatically. The nozzles rotate 360o in a continuous movement. To optimise the downward pressure of the water, the SC 360APR restricts the water from being projected upwards. This is clearly marked for easy installation.

The SC 360APR is developed to protect crew, vessel and cargo. It is a non lethal, passive way of protecting the ship without provoking the attacker.

Bio 2 is a rotating spray nozzle/head that is driven by the cleaning fluid and is a very effective CIP alternative compared to traditional static spray balls.

The fan like cleaning action provides improved coverage at low pressure whilst reducing the usage of cleaning media to a minimum. Each unit has a double ball bearing design that allows installation and operation in any position.

Quality Control, Compliances & Certifications

Bio 2 is manufactured in AISI 316/316L and can be polished according to specification. The standard documentation includes a “Declaration of Conformity” and material certificates can also be quoted on request.

Typical applications for the Bio 2

• Small process tanks
• Small containers/barrels
• Piping/ducting
• Vent stacks

Specifications
Flow: 0.9-8.4 m³/h

Inlet pressure: 1-5 bar

Max pressure: 5 bar

Recommended pressure: 3 bar

Max working temperature: 95°C

Max ambient temperature: 140°C

Weight: 100 g

Connection: 3/8” BSP or NPT, weld-on or pin.

Material Balls in AISI 316 all other parts in AISI 316L

Lubrication: Cleaning media

Bio 5 is a rotating spray nozzle/head that is driven by the cleaning fluid and is a very effective CIP alternative compared to traditional static spray balls.

The fan like cleaning action provides improved coverage at low pressure whilst reducing the usage of cleaning media to a minimum.

Quality Control, Compliances & Certifications

Bio 5 is manufactured in AISI 316/316L and can be polished according to specification. The standard documentation includes a “Declaration of Conformity” and material certificates can also be quoted on request.

Typical applications for the Bio 5

• IBC’s
• Small yeast tanks
• Milk transportation
• Large barrels
• Large ducting

Specifications

Flow: 2.1- 8.4 m³/h

Inlet pressure: 1-5 bar

Max pressure: 5 bar

Recommended pressure: 3 bar

Max working temperature: 95°C

Max ambient temperature: 140°C

Weight: 280 g

Connections: 3/4” BSP or NPT, weld-on or pin

Material: Balls in AISI 316 and PTFE, all other parts in AISI 316L

Lubrication: Cleaning media

Bio 7 is a rotating spray nozzle/head that is driven by the cleaning fluid and is a very effective CIP alternative compared to traditional static spray balls.

The fan like cleaning action provides improved coverage at low pressure whilst reducing the usage of cleaning media to a minimum.

Quality Control, Compliances & Certifications

Bio 7 is manufactured in AISI 316/316L and can be polished according to specification. The standard documentation includes a “Declaration of Conformity” and material certificates can also be quoted on request.

Typical applications for the Bio 7

• IBC’s
• Small yeast tanks
• Milk transportation
• Large barrels
• Large ducting

Specifications

Flow: 7.5-29.5 m³/h

Inlet pressure: 1-5 bar

Max pressure: 5 bar

Recommended pressure: 2-3 bar

Max working temperature: 95°C

Max ambient temperature: 140°C

Weight: 500 g

Connections: 1 1/4” BSP or NPT, weld-on or pin

Material: Balls in AISI 316, all other parts in AISI 316L

Lubrication: Cleaning media

The Bio 10 rotary jet head is a hygienic tank cleaning machine that provides 360deg coverage within a given tank or process vessel. The Bio 10 is self powered by the flow of the fluid through the inlet cone of the machine. An increase in pressure and flow will correspondingly increase the length of the jet and impact upon the tank or vessel surfaces. The Bio 10 employs exclusive self-washing features that allows itself to be completely covered and has been certified in rinse validation protocols such a riboflavin rinse validation and yogurt washing trials.

Quality Standards

The Bio 10 is produced in accordance to stringent quality standards and meets or exceeds ISO 9001 International Quality Standards as well as conforming to the cGMP as detailed by the United States FDA (Food and Drug Administration and EHEDG (European Hygienic Equipment Design Group).

Typical Cleaning Methods:

• Fixed Installed CIP Systems
• Multi-Tank Solution Recovery
• Single Use/Single Pass
• Single Use/Recirculatory

Typical application for the Bio 10:

• Process vessels and reactors
• Storage tanks
• Transportations tanks
• Fermenters
• Yeast propagation

Specifications:

Flow: 5-17 m³/h

Inlet pressure: 3-12 bar

Max pressure: 12 bar

Recommended pressure: 5-7 bar

Max temperature: 95°C

Max ambient temperature: 140°C

Weight: 5 kg

Connections standards: 1" BSP or NPT, weld adapter

Material: AISI 316L, PTFE/GLASS (alt. PE1000), PEEK-TX, EPDM

Lubrication: Cleaning media

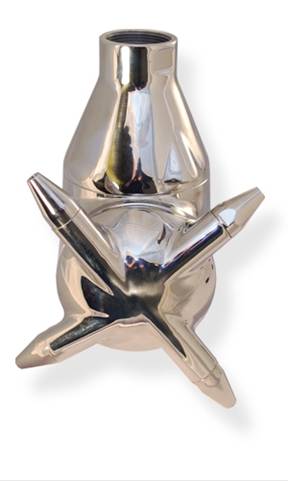

The Bio 25 rotary jet head is a hygienic tank cleaning machine that provides 360° coverage within a given tank or process vessel. The Bio 25 is self powered by the flow of the fluid through the inlet cone of the machine. An increase in pressure and flow will correspondingly increase the length of the jet and impact upon the tank or vessel surfaces. The Bio 25 employs exclusive self-washing features that allows itself to be completely covered and has been certified in rinse validation protocols such a riboflavin rinse validation and yogurt washing trials.

Quality Standards

The Bio 25 is produced in accordance to stringent quality standards and meets or exceeds ISO 9001 International Quality Standards as well as conforming to the cGMP as detailed by the United States FDA (Food and Drug Administration and EHEDG (European Hygienic Equipment Design Group).

Typical Cleaning Methods:

Fixed Installed CIP Systems

Multi-Tank Solution Recovery

Single Use/Single Pass

Single Use/Recirculatory

Typical application for the Bio 25:

Process vessels and reactors

Storage tanks

Transportations tanks

Fermenters

Yeast propagation

Specifications
Flow: 6-45 m³/h

Inlet pressure: 3-14 bar

Max pressure: 14 bar

Recommended pressure: 6 bar

Max temperature: 95°C

Max ambient temperature: 140°C

Weight: 7 kg

Connections standards 1,5” BSP or NPT, weld adapter

Material: AISI 316L, PTFE/GLASS (alt. PE1000), PEEK, Tungsten, AI2O3

Lubrication: Cleaning media
